Series 2 wall-mounted cooker hood 60 cm , Black
DWK63PJ61M

1 / 0
Photo Nr. 1 of the product DWK63PJ61M
Photo Nr. 2 of the product DWK63PJ61M
Photo Nr. 3 of the product DWK63PJ61M
Photo Nr. 4 of the product DWK63PJ61M
Photo Nr. 5 of the product DWK63PJ61M
Photo Nr. 6 of the product DWK63PJ61M
Photo Nr. 7 of the product DWK63PJ61M
Photo Nr. 8 of the product DWK63PJ61M

Series 2 wall-mounted cooker hood 60 cm , Black
DWK63PJ61M

Find a local Dealer
Find a local dealer in your vicinity

Series 2 wall-mounted cooker hood 60 cm , Black
DWK63PJ61M

Find a local Dealer
Find a local dealer in your vicinity

Technical Overview

Sound power at max. speed (2010/30/EC)
64 dB
Max. air extraction
360 m³/h
Color body
Black
Material body
Glass
Built-in / Free-standing
Built-in
Width
60 cm

Highlights

Specifications

Width
60 cm
Color body
Black
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
120 W
Type of control setting and signalling devices
Button
Number of speed settings
3
Max. air extraction
360 m³/h
Sound power at max. speed (2010/30/EC)
64 dB
Max. air recirculation
243 m³/h
Sound power at max. speed (recirculation)
67 dB
Grease filter material
Washable aluminium
Total annual energy consumption
66.2 kWh/annum

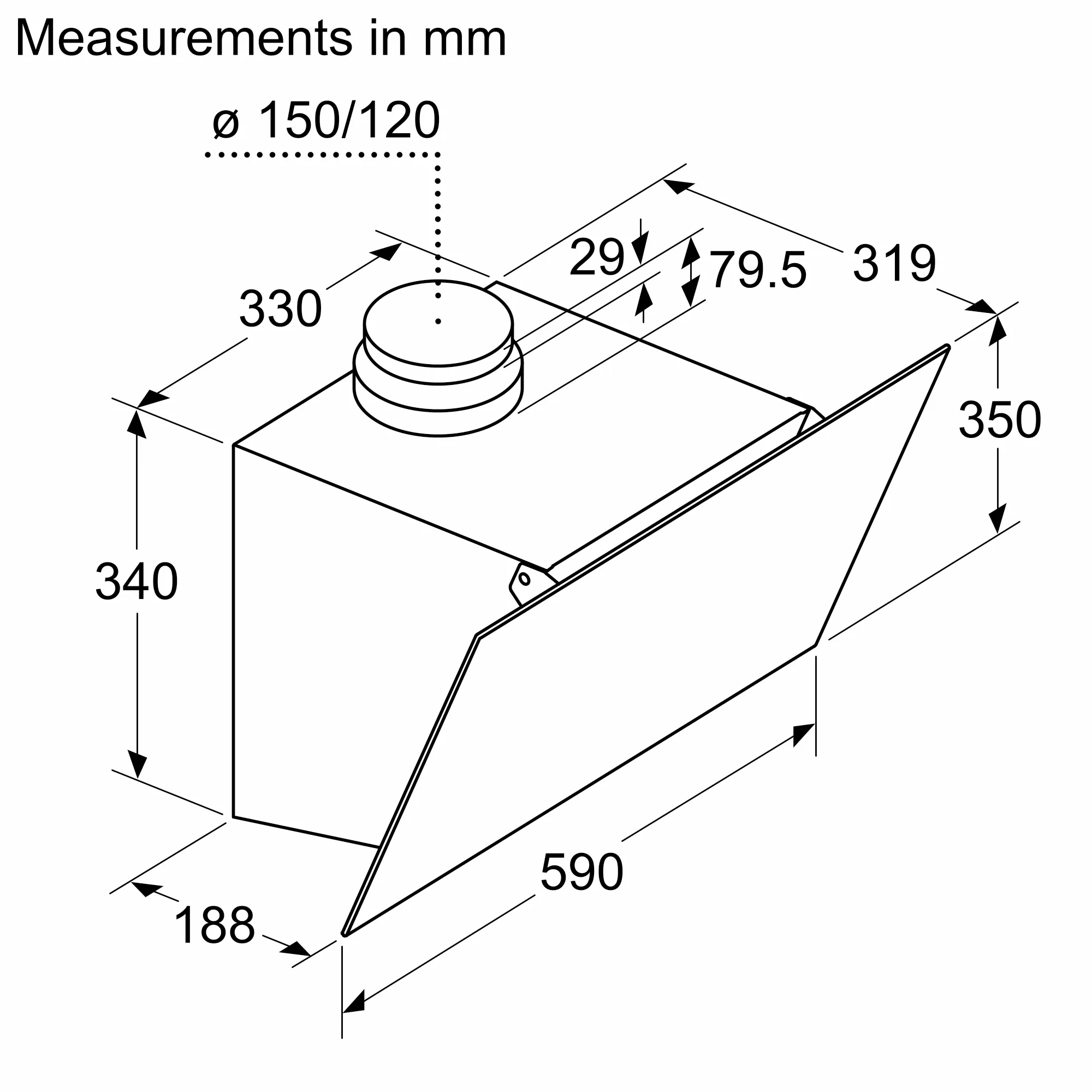

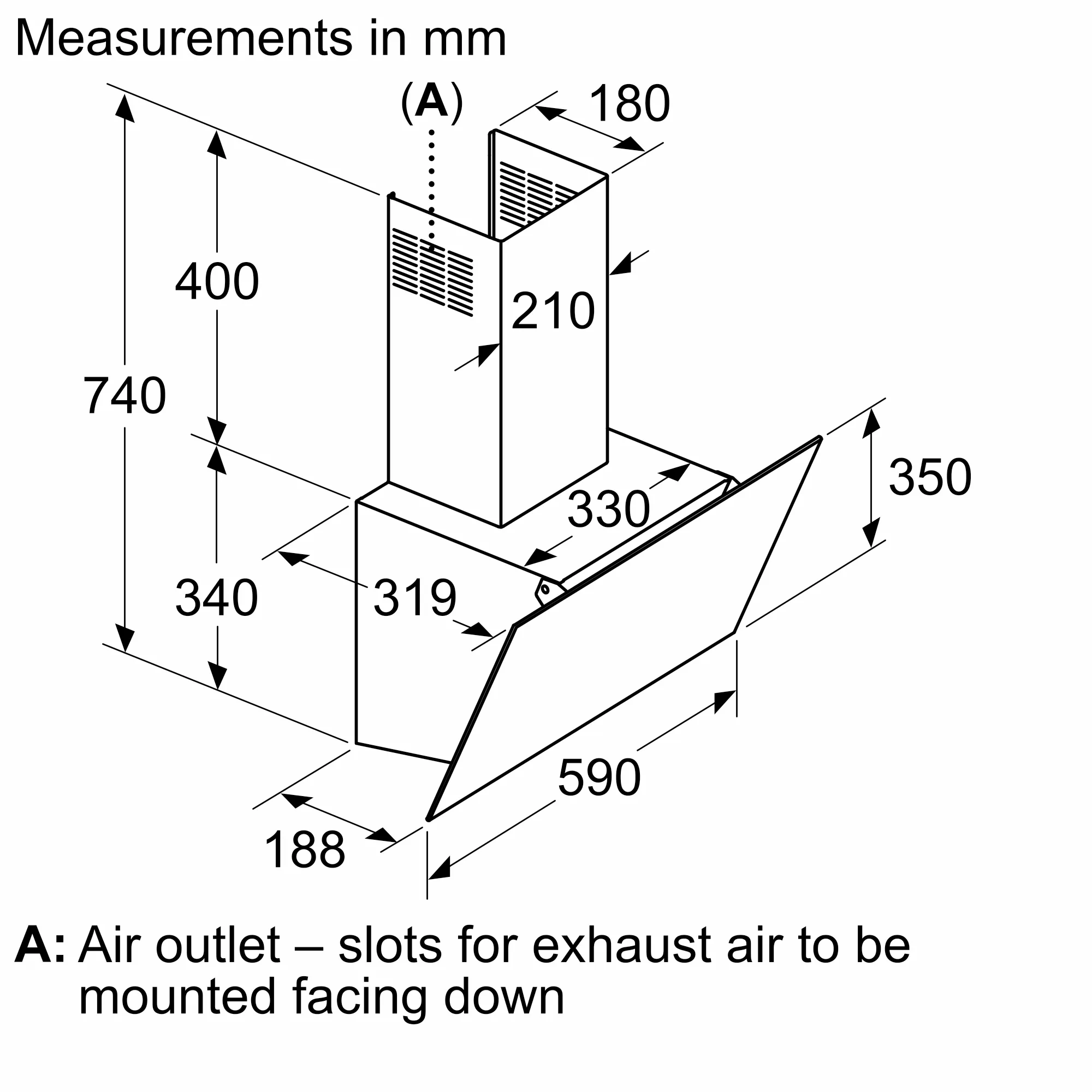

Height of the appliance
340 mm
Width of the appliance
590 mm
Depth of the product
319 mm
Height of the chimney
GENERAL.N_A mm

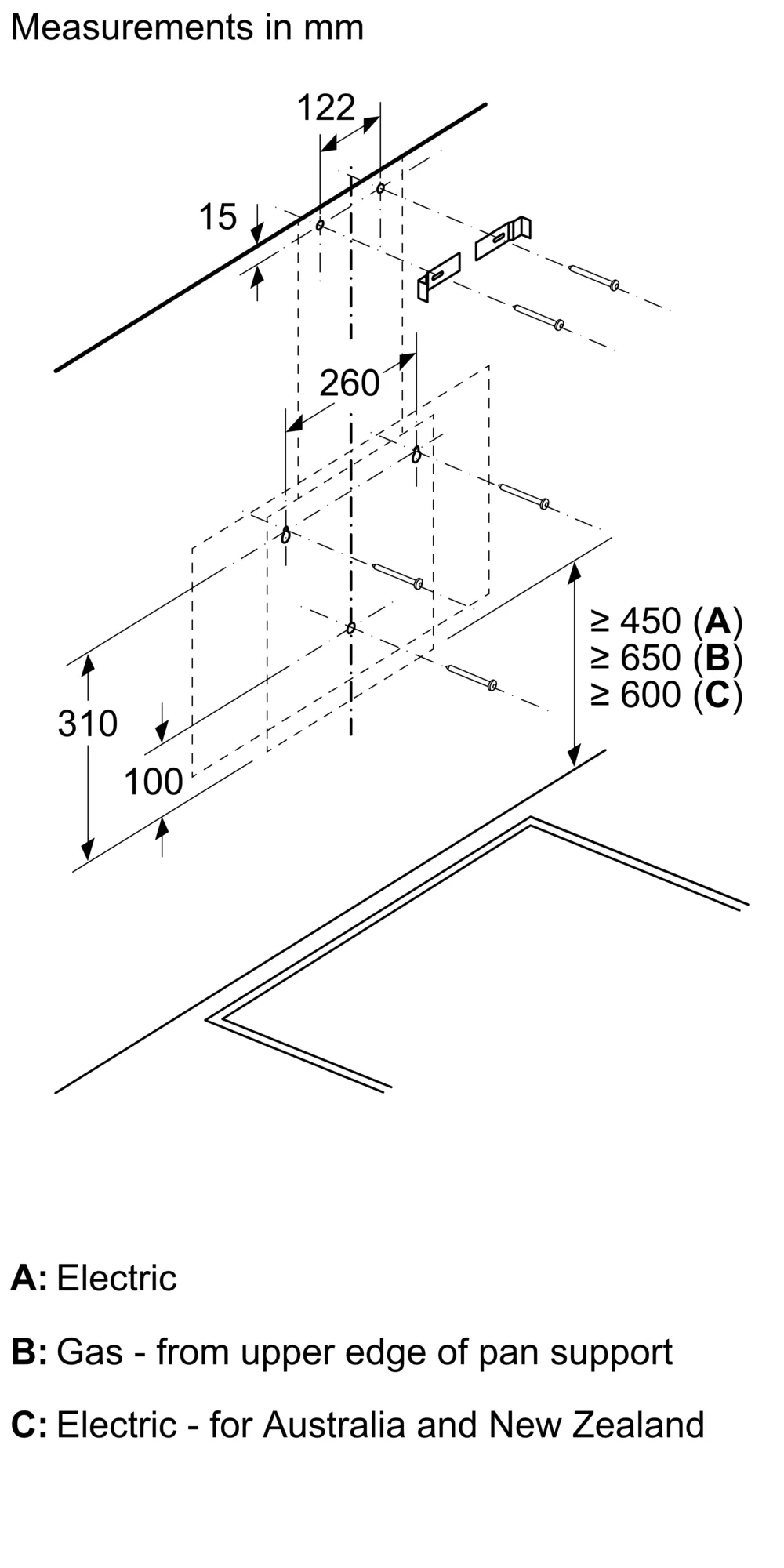

Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
150 cm
Net weight
11.9 kg
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
Photo Nr. 3 of the product
Automatic air sensor
No
Extremely quiet and powerful brushless BLDC motor
No
Extremely quiet
No
Clean filter reminders
No
Boost position
No
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Total power of the lamps
GENERAL.N_A W
Color temperature
Warm (<= 3.000 K)
Ambient light
No
Connected appliances with Home Connect
No
Cooktop-based hood control
No
