Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
4
9 precise power levels
Yes
Frame type
Flush or surface mounted
Basic surface material
Tempered glass
Material of pan supports
Cast iron w rubber feet single
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Highlights
Awards
Specifications
Basic surface material
Tempered glass
Frame type

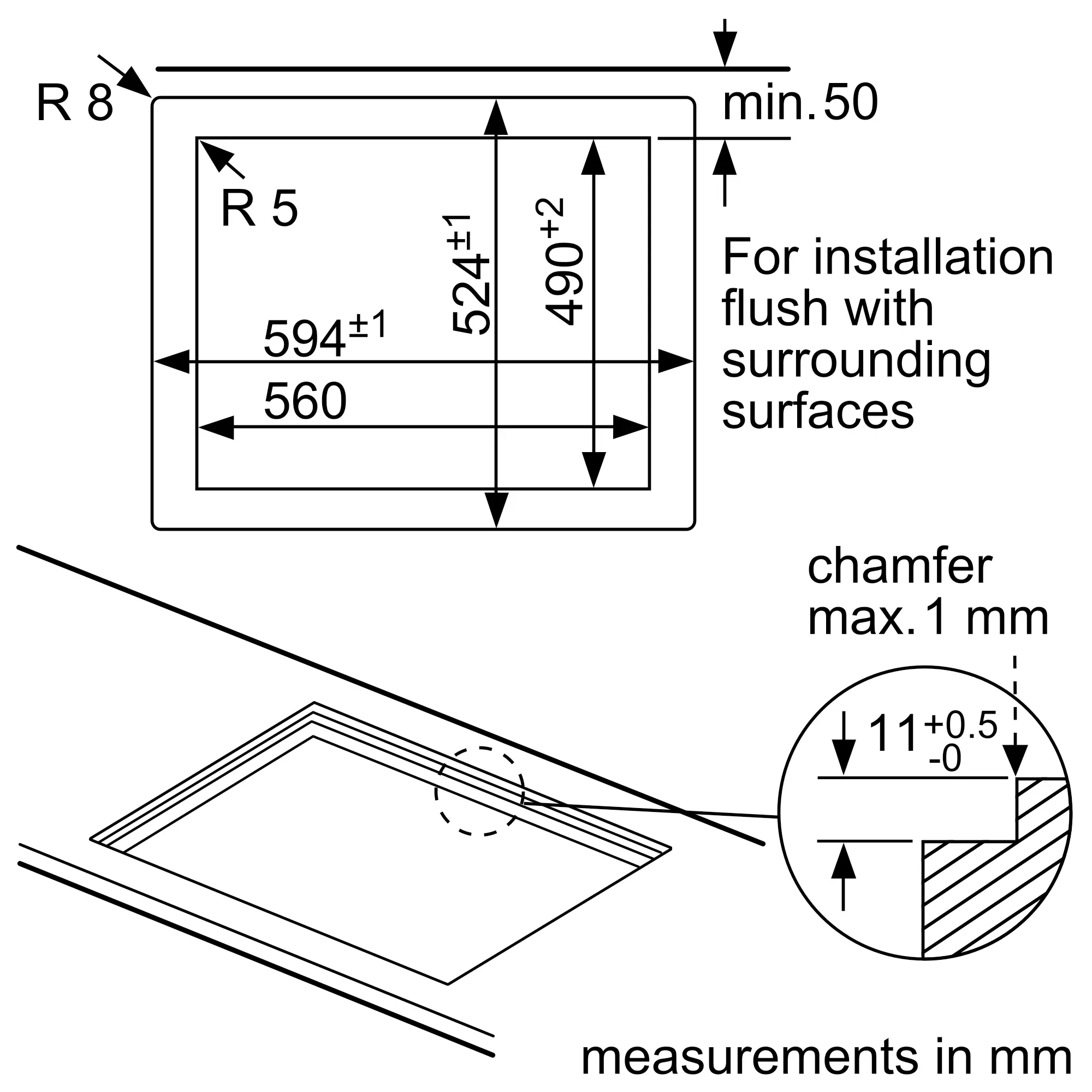

Flush or surface mounted
Flushmount
Yes
Material of pan supports
Cast iron w rubber feet single
Flat burner
No
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Other certified gas types
Nat gas L/LL G25/20mbar(DE), Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar (PL), Liquid gas 50 mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Width
60 cm
Dimensions
45x590x520 mm
Dimensions of the packed product (HxWxD)
141x651x578 mm

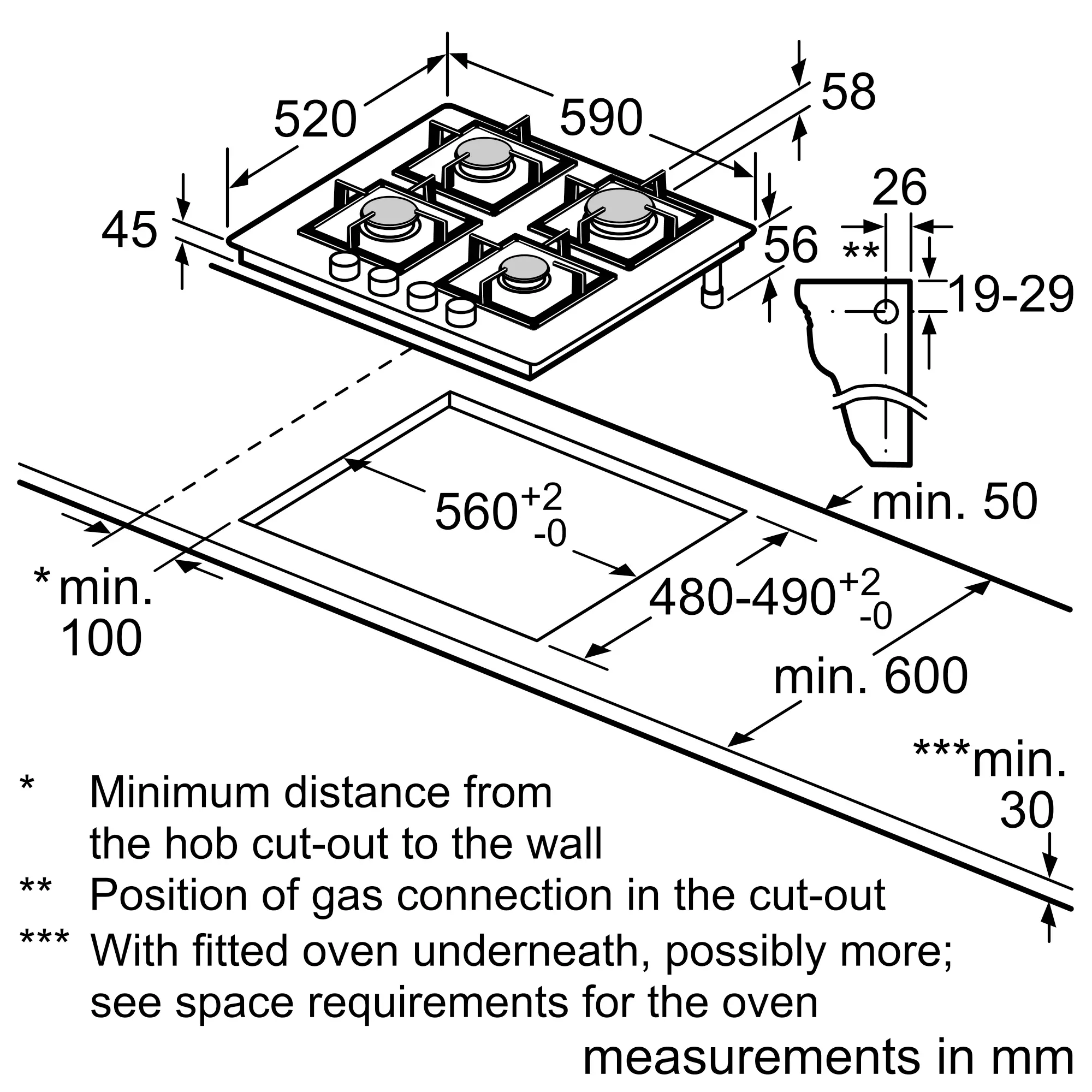

Required niche size for installation (HxWxD)
45 x 560-562 x 480-492 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
30 mm / 12 mm
Length electrical supply cord
100 cm
Voltage
220-240 V
Plug type
No plug (electrical connection by electrician)
Gas connection rating
7500 W
Total number of positions that can be used at the same time
4
Dual wok burner
No
Power of the heating elements
1 x 1.0, 1 x 3.0, 2 x 1.75 kW
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner
9 precise power levels
Yes
Display
No
dishwasher safe pan support
No
Removable knobs for easy cleaning
No
Location of control panel
Front
Type of control setting and signalling devices
Knob
Hob ignition
Knob ignition
One piece burner
No
Timer
Not applicable
Connected appliances with Home Connect
No
Safety device
Flame failure safety device for each burner
Residual heat indicator
No
Max. spin speed
No
